Features

  • Precise & User Friendly
  • Precise PWM based DC Stepper motor Drive
  • Occlusion adjustable Spring loaded Pump Head
  • Advanced EEPROM technology for data storage
  • Membrane keypad with Menu drivrn LCD
  • Complied with CE requirement
  • Pumps are available with RS 232 / RS 485 interface
No.of Channels one
Flow Rate 0.1 to 99.9 ml/min
Set Volume 0 to 999.9 ml
Interval Time 0 to 99.9 sec.
Tubing 1 to 3 mm ID, 1 to 1.6 mm Wall thickness
No.of Rollers 2
Pressure UP to 2 Bar
Accuracy +/- 1%
Input Supply 230V +/- 10%, 50Hz, Single phase AC, 50 Watt
Display Single line 8 Character Liquid crrystal Display
Motor DC Stepper Motor (Cont. Duty)
Drive Microcontroller Based control Circuit and PWM Based DC Stepper Motor Drive
Remote ON Potential free Digital Input

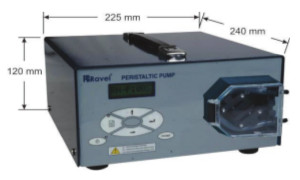

Weight 6 Kgs (Approx)
Enclosure Powder coated Aluminium
Outer ARM Anodized Aluminium
ARM Cover Transparent Polycarbonate
Rotor G.F. Nylon
Rollers Carbon Filled Nylon
